Pesticide Tank 16L Agriculture Spraying Drone FPV Camera 10km Image Transmission First Person View
Quick details:
Flying distance:>5000m;
Working distance: >2000m;
Flying speed: 0~10m/s;
Spray Width: 3~3.5m;
Spray Flow: 1.2~2L/minute.
Specification:
| Model | NLA-410 | NLA-416 | NLA-610 | NLA-616 | NLA-622 | NLA-630 | NLA-650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
| Flight Controller | | 2CPU + 3 IMU | | 2CPU + 3 IMU | | | |
| GPS Dot Device | | √ | | √ | √ | √ | √ |
| Hovering accuracy Horizontal / Vertical | | +/- 1.5 / 0.5 m | | +/- 1.5 / 0.5 m | | | |
| Wind resistance | | 4～5 | | 4～5 | | | |
| Motor | | 4*110KV | | 6*100KV | | | |
| Electronic Speed Control | | 120A | | 80A | | | |
| Motor applicable temperature | | -20～50°C | | -20～50°C | | | |
| Foldable propeller | | 3411 | | 3090 | | | |
| Pesticide Tank | | 16L | | 16L | 22L | 30L | 50L |
| Take-off Capacity | | 38kgs | | 42kgs | | | |
| Flying Time (with payload) | | 15~20minutes | | 15~20minutes | | | |
| Spray Efficiency | | 1000~2100sqm/min | | 1500~2400sqm/min | | | |
| Expand Size | | 1848*1848*628mm | | 2428*2428*600mm | | | |
| Wheelbase | | 1416mm | | 1648mm | | | |
| Folded Size | | 648*671*628mm | | 1102*979*600mm | | | |
| Battery / Quantity | | 6S/22000mAh / 2pcs | | 6S 22000mAh / 2pcs | | | |
| FPV Camera | | √ | | √ | | | |
| Terrain following radar Obstacle avoidance radar RTK centimeter positioning | | Optional | | Optional | Optional | Optional | Optional |
Remoter Controller
1. 5.5“ high brightness definition display can clearly view information under strong light conditions;
2. Removable lithium battery with high performance, 6 hours long life, it can be replaced quickly to ensure continous operation;

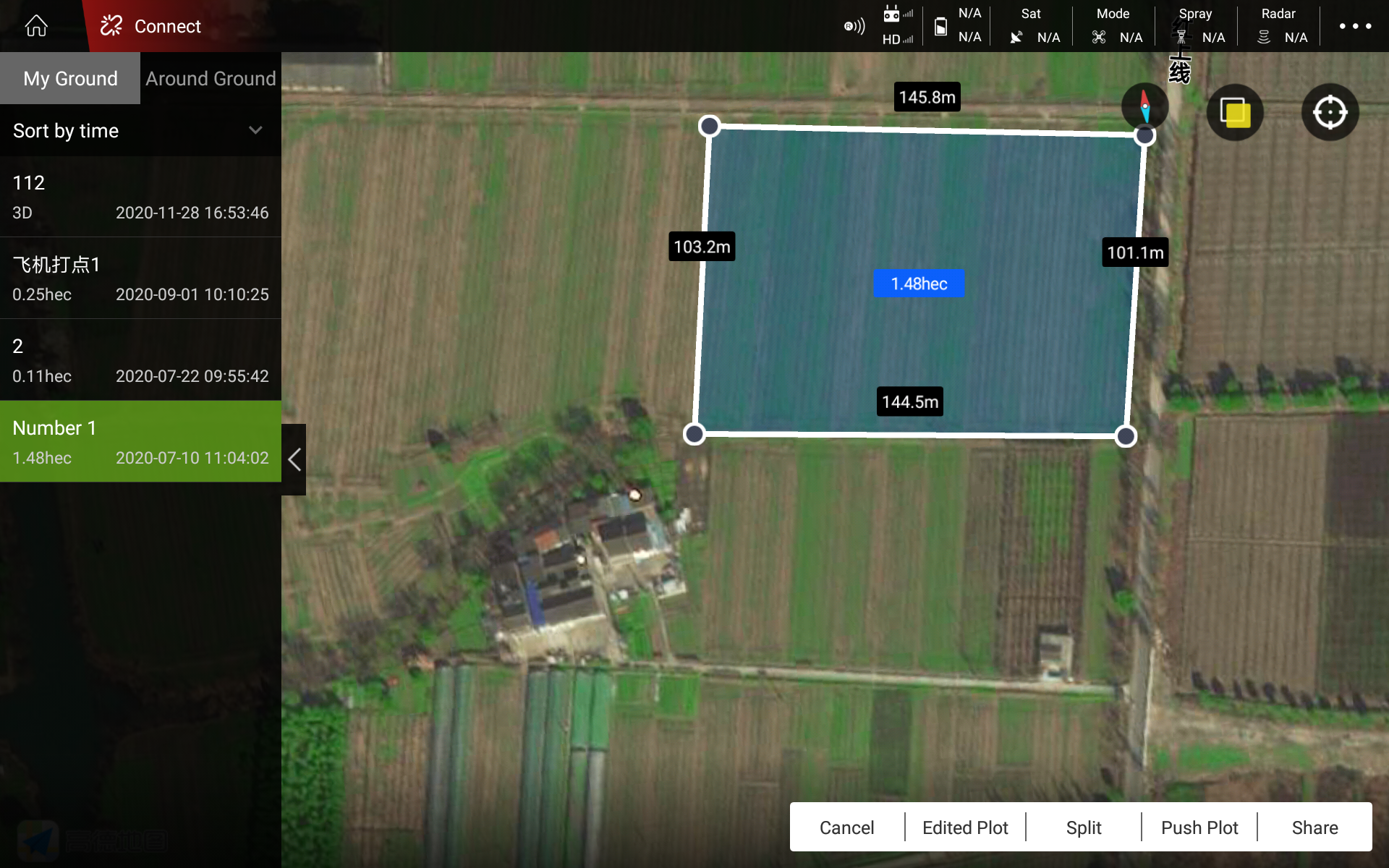

3. Android system with ground station, it supply google map and FPV video;
4. Support hand held GPS dot device, RTK dot device, drone GPS dot and Map dot for choosing, it can set up automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, automatic terrain following, automatic obstacle avoidance, course adjustment, fail-sail back. etc. service.
