Agriculture Drone Feed Tank 10kgs Sowing of Solid Fertilizer Sowing of Seeds
Quick start
1. 3~6m spread width;
2. 0.5~6mm solid fertilizer or seeds;
3. Spread speed control;
4. Automatic obstacle avoidance;
5. Terrain following
Product Description
| Model | NSA410 | NSA422 | NSA610 | NSA622 |
| Rotor | 4 | 4 | 6 | |
| Motor | 4*100KV | | 6*180KV | |
| Electronic Speed Control | 80A | | 80A | |
| Motor applicable temperature | -20～50℃ | | -20～50℃ | |
| Paddle | 3090 | | 2388 | |
| Feed Tank | 10L | | 10L | |
| Take-off Capacity | 28kg | | 30kg | |
| Flying Time (with payload) | 10~15min | | 10~15min | |
| Flying distance | 5000m | | 5000m | |
| Working distance | 2000m | | 2000m | |
| Flying Speed | 0~10m/s | | 0~10m/s | |
| Spreading Width | 3~6m | | 3~6m | |
| Spread Distance | 2~5m | | 2~5m | |
| Solid particles | 0.5~6mm | | 0.5~6mm | |
| Expand Size | 1780*1780*567mm | | 1992*1992*562mm | |
| Wheelbase | 1362mm | | 1407mm | |
| Folded Size | 700*658*567mm | | 945*848*562mm | |
| Battery / Quantity | 6S/22000mAh / 2pcs | | 6S/22000mAh / 2pcs | |
| FPV Camera | Optional | | Optional | |
| Obstacle avoidance radar | Optional | | Optional | |
| Terrain following radar | Optional | | Optional | |
| RTK centimeter positioning | Optional | | Optional | |

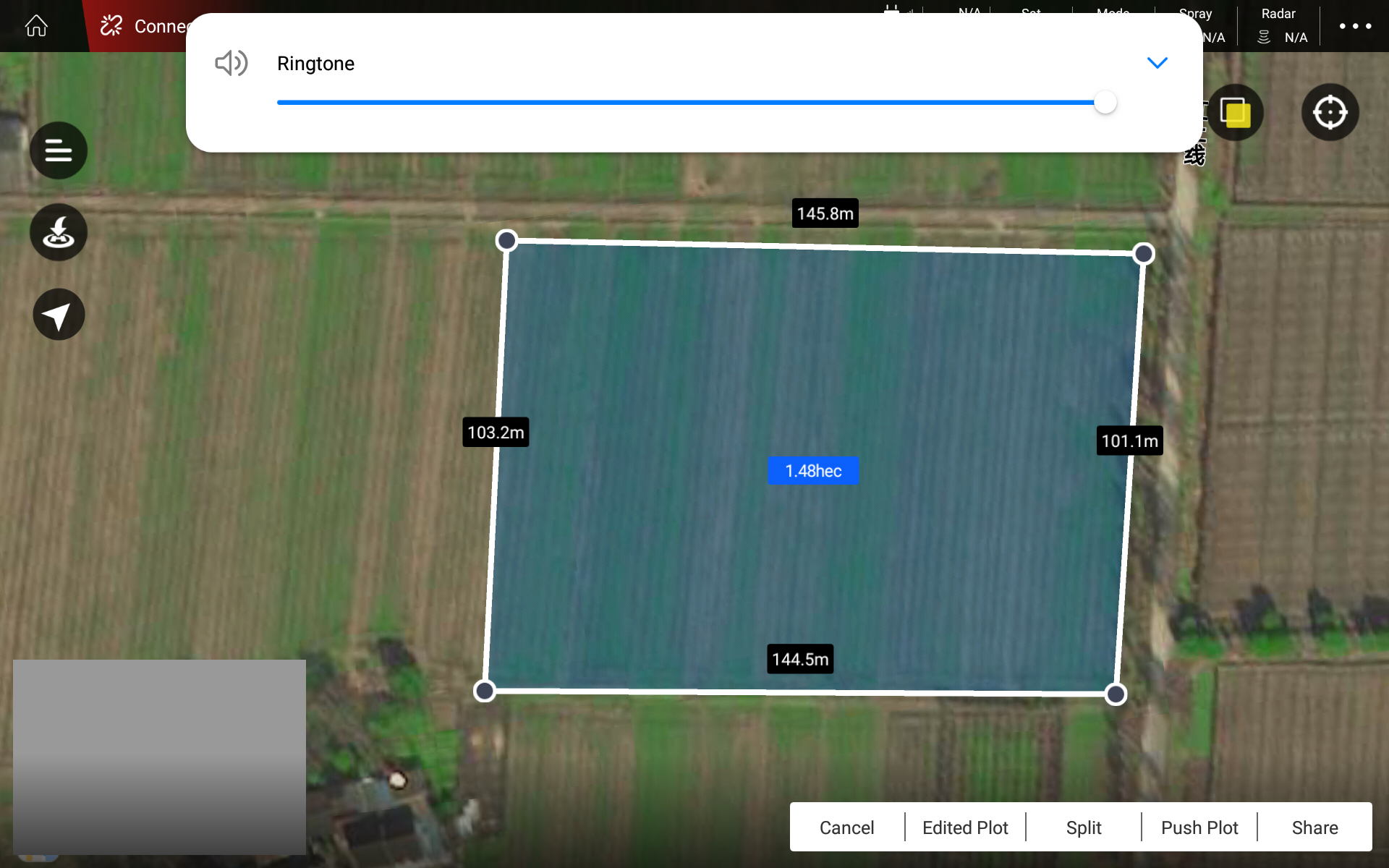

APP Ground Workstation
1. 5.5" display on Remote Control and android system, ground workstation;
2. Control and adjust flying parameter;
3. Provide google map, check FPV video;
4. Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed;
5. Supply terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
6. Supply job record, flight time, spray width, dose etc.
Spreading Tank
10kgs spreader loaded on the drone, it can adjust the size of the outlet valve and the speed of the spreading turntable, so it can control the discharge volume accurately and the discharge speed. Besides, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
Chassis of Drone
The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts).
New folding part, the unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.
Ground defense radar
Characteristic:
i. Strong penetration, not affected by light.
ii. Strong anti-interference ability and good environmental applicability.
iii. Stable performance with detection range of 15m.
iiii. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.
iiiii. Small in size and light in weight.
Obstacle avoidance radar
Characteristic:
i. High sensitivity
ii. Far detection distance
iii. Signal transmission is fast and stable
iiii. All day work
iiiii. Strong environmental adaptability
